LG Chem Brackish (BW) & Seawater (SW) RO Membranes
Lowering the Cost of Desalination
LG Chem Water Solutions has set a new standard for membrane productivity within the reverse osmosis desalination industry. Utilizing patent-pending thin-film nanocomposite membranes, LG Chem’s spiral-wound NanoH2O membrane elements deliver the highest flux and energy efficiency when compared to the current installed base. Extensive research and development in innovative technologies allow LG to manufacture membrane materials that demonstrate increased permeability and/or increased salt rejection, fundamentally changing the economics of desalination.
Our LG Chem Brackish and Seawater reverse osmosis membranes feature nanomaterials incorporated into the thin-film polyamide composite layer that improve membrane energy efficiency and productivity. The innovative patented technology significantly increases membrane permeability, increases flow, and reduces energy consumption, while matching best-in-class salt rejection.
LG Chem water anti-fouling membranes also feature proprietary chemistry to inhibit adsorption of biological and organic materials.
LG CHEM 4 INCH and 8 INCH BRACKISH (BW) RO MEMBRANES
LG Chem Water Solutions develops, manufactures and markets the next generation of BWRO elements for water treatment. We offer industry-standard 8-inch and 4-inch element configurations that retrofit easily into standard pressure vessels.Model Number Membrane Area Element Diameter Permeate Flow Rate StabilizedNaCl Rejection Feed Spacer LG BW 400 ES 37 m² (400 ft²) 20 cm (8 in) 39.7 m³/d (10,500 gpd) 99.6% 34 mil LG BW 440 ES 41 m² (440 ft²) 20 cm (8 in) 43.7 m³/d (11,500 gpd) 99.6% 28 mil LG BW 4040 ES 7.9 m² (85 ft²) 10 cm (4 in) 9.5 m³/d (2,500 gpd) 99.5% 28 mil LG BW 400 R 37 m² (400 ft²) 20 cm (8 in) 39.7 m³/d (10,500 gpd) 99.6% 34 mil LG BW 440 R 41 m² (440 ft²) 20 cm (8 in) 43.7 m³/d (11,500 gpd) 99.6% 28 mil LG BW 4040 R 7.9 m² (85 ft²) 10 cm (4 in) 9.5 m³/d (2,500 gpd) 99.6% 28 mil LG BW 400 AFR 37 m² (400 ft²) 20 cm (8 in) 39.7 m³/d (10,500 gpd) 99.6% 34 mil LG BW 4040 AFR 7.4 m² (80 ft²) 10 cm (4 in) 8.7 m³/d (2,300 gpd) 99.6% 34 mil Technical Datasheet
We Are Pleased to Provide Technical Datasheets Upon Request
LG CHEM 8 INCH SEAWATER (SW) RO MEMBRANES
LG Chem Water Solutions develops, manufactures and markets the next generation of SWRO elements for desalination. We offer industry-standard 8-inch element configurations that retrofit easily into standard pressure vessels.Model Number Membrane Area Element Diameter Permeate Flow Rate StabilizedNaCl Rejection Stabilized Boron Rejection LG SW 400 ES 37 m² (400 ft²) 8 inches 52 m³/d (13,700 gpd) 99.8% 89% LG SW 440 ES 41 m² (440 ft²) 8 inches) 57 m³/d (15,070 gpd) 99.8% 89% LG SW 400SR 37 m² (400 ft²) 8 inches 22.7 m³/d (6,000 gpd) 99.85% 93% LG SW 440 SR 41 m² (440 ft²) 8 inches) 25 m³/d (6,600 gpd) 99.85% 93% LG SW 400 GR 37 m² (400 ft²) 8 inches 28.4 m³/d (7,500 gpd) 99.85% 93% LG SW 440 GR 41 m² (440 ft²) 8 inches 31.2 m³/d (8,250 gpd) 99.85% 93% LG sW 400 R 37 m² (400 ft²) 8 inches 34 m³/d (9,000 gpd) 99.85% 93% LG sW 440 R 41 m² (440 ft²) 8 inches 37 m³/d (9,900 gpd) 99.85% 93% The above values are normalized to the following test conditions: 32,000 ppm NaCI, 5 ppm Boron, 5.5 MPa (800 psi), 25°C(77°F), pH 8, 8% recovery. Permeate flows for individual elements may vary -/+ 15%.
Technical Datasheet
We Are Pleased to Provide Technical Datasheets Upon Request
-
LG Chem Residential TWRO Reverse Osmosis Membrane Elements
LG Chem’s NanoH2OTM reverse osmosis elements for residential water treatment utilize advanced thin-film nanocomposite membrane technology to safely and effectively treat water for home use. These membranes are NSF Certified and deliver the reliability and quality customers from around the world have come to expect from LG Chem.
All LG Chem TWRO residential RO membranes are available in standard configurations and can easily fit into any point-of-use residential RO systems.
Technical Datasheet
We Are Pleased to Provide Technical Datasheets Upon Request
-
Dow RO Membranes
DOW FILMTEC 4 INCH and 8 INCH BRACKISH (BW)
Our DOW FILMTEC™ Brackish and Seawater RO Elements with 8-inch, or 4-inch diameters, feature high active membrane areas, low net driving pressure, thicker feed spacers, ant-fouling surface chemistry, and iLEC™ Interlocking End Caps for no o-ring leaks. These features provide consistent high performance, maximum element life, lower energy usage, and reduced costs when treating difficult water.
BRACKISH 8 INCH MEMBRANES:
- BW30-365
- BW30-400
- BW30-400/34i
- BW30XFR-400/34i
- BW30-440i
- BW30HR-440i
- LE-400
- LE-440i
- HRLE-440i
- XLE-440
BRACKISH 4 INCH MEMBRANES:
- BW30-4040
- LC HR-4040
- LC LE-4040
- BW30HR-440
- LE-4040
- LP-4040
- TW30-4040
- XLE-4040
DOW FILMTEC 4 INCH and 8 INCH SEAWATER (SW)
Our DOW FILMTEC™ Brackish and Seawater RO Elements with 8-inch, or 4-inch diameters, feature high active membrane areas, low net driving pressure, thicker feed spacers, ant-fouling surface chemistry, and iLEC™ Interlocking End Caps for no o-ring leaks. These features provide consistent high performance, maximum element life, lower energy usage, and reduced costs when treating difficult water.
BRACKISH 8 INCH MEMBRANES:
- SEAMAXX
- SW30HR-380
- SW30HRLE-370/34i
- SW30HRLE-400
- SW30HRLE-400i
- SW30HRLE-440i
- SW30ULE-400i
- SW30ULE-440i
- SW30XHR-400i
- SW30XHR-440i
- SW30XLE-400i
- SW30XLE-440i
BRACKISH 4 INCH MEMBRANES:
- SW30HRLE-4040
- SW30-4021
- SW30-4040
DOW FILMTEC < 4 INCH BRACKISH (BW) and SEAWATER (SW)
Our DOW FILMTEC™ Brackish and Seawater RO Elements with a diameter less than 4 inches are industry standards for reliable operation and production of high quality commercial water at low pressure operations. These RO Elements feature exceptional flow rates and may be operated at lower pressure to reduce pump size, cost, and operating expenses.
We Are Pleased to Provide Technical Datasheets Upon Request
DOW FILMTEC Sanitary, Heat Sanitizable
Our DOW FILMTEC sanitary full fit and heat sanitizable RO membrane elements with 8-inch, or 4-inch diameters, are specifically designed for sanitary, food-dairy, pharmaceutical, medical, and other sanitary applications. The full-fit configuration minimizes stagnant areas and is ideal for sanitary design applications. Our heat sanitizable RO membranes deliver exceptional quality water with the added capability to withstand sanitization with hot water, including condensate polishing.
Sanitary 8 Inch Membranes:
- RO-390-FF
- HSRO-390-FF
Sanitary 4 Inch Membranes:
- RO-3838/30-FF
- RO-3840/30-FF
- RO-3938/30-FF
- RO-4040-FF
- HSRO-4040-FF
-
Dow NF Membranes

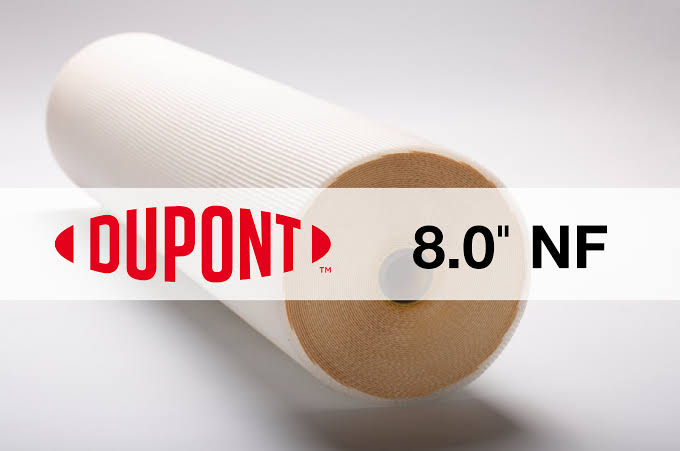

DOW FILMTEC 4 Inch and 8 Inch Nanofiltration (NF) Membranes
Our DOW FILMTEC™ NF Elements with an 8-inch or 4-inch diameters provide exceptionally high productivity and are designed to remove a high percentage of salts, minerals, nitrate, iron and organic compounds such as pesticides, herbicides, and THM precursors with low energy usage and reduced power consumption and cost.
Nanofiltration 8 Inch Membranes:
- NF245-390-FF
- NF270-400/34i
- NF90-400/34i
Nanofiltration 4 Inch Membranes:
- NF270-4040
- NF90-4040
- NF245-3838/30-FF
- NF245-3840/30-FF
-
Dow UF Membranes

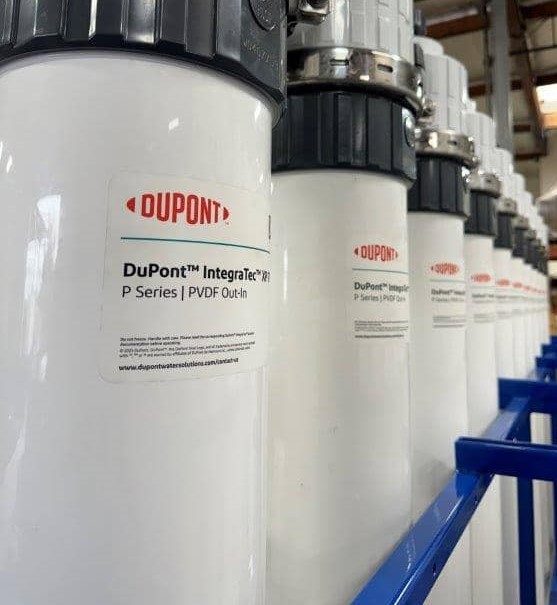

OW Integraflux Ultrafiltration (UF) Hollow Fiber Membranes
Ultrafiltration (UF) technology uses a membrane barrier to exclude particles as small as 0.01 microns, including bacteria, viruses, pathogens, suspended solids, and colloids. Advantages of UF compared to clarifiers and media filters, are its high tolerance to feed water quality upsets, absolute barrier and improved water quality. Our DOW IntegraFlux™ Ultrafiltration Modules and DOW IntegraPac™ Ultrafiltration Skids utilize the latest PVDF hollow fiber membranes in an outside-in flow configuration with a 0.03 micron nominal pore diameter making them an excellent choice to protect downstream processes such as RO.
We Are Pleased to Provide Technical Datasheets Upon Request

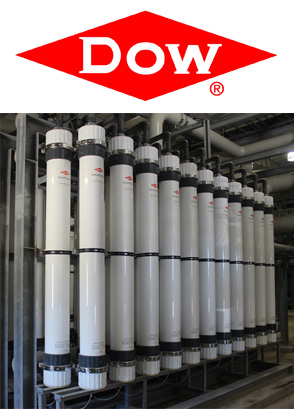

DOW IntegraPac Ultrafiltration (UF) Skids
Our DOW IntegraPac Skids are pre-engineered, standardized and ready-to-assemble skids comprised of DOW UF membrane modules, auxiliary parts and piping to significantly streamline design, assembly and installation.
We Are Pleased to Provide Technical Datasheets Upon Request
